Bodykit Mercedes-AMG GT 63 S X290 (DIAMANT-GT) by SCL-GLOBAL-Concept contains over 30 new elements which perfectly complement the body shapes of the Mercedes-X290.
New Mercedes-AMG GT 63 S X290 (DIAMANT-GT) kit parts:
- Hood
- Aerodynamic front bumper elements
- Front bumper
- Rear bumper
- Middle insert for rear bumper
- Aerodynamic rear bumper elements
- Side inserts for rear bumper
- Diffuser
- Side skirts
- Moldings
- Wheel arch extensions
- Top spoiler
- Mid spoiler
- Exhaust tip
The tuning (bodykit) DIAMANT-GT can be purchased both from ultra-high-temperature Fiberglass, and in an exclusive version of Carbon Fiber with a unique pattern (Carbon Twill 2/2, Carbon Twill 4/4, Carbon FORGED, Stealth Carbon Fiber)
Parts made of ultra-high-temperature Fiberglass have the weight of the original part, with a thickness of 2-3 mm according to standards, with a temperature range of up to 120° and a maximum strength.
The exclusive version of the body kit for Mercedes-AMG GT 63 S X290 (DIAMANT-GT) made of carbon fiber, is made in accordance with parameters close to aviation technologies, has a high coefficient of strength, with a temperature regime above 120° and a weight lower than the original parts (Mercedes-X290)
Video of model:
Kit components
Wheels

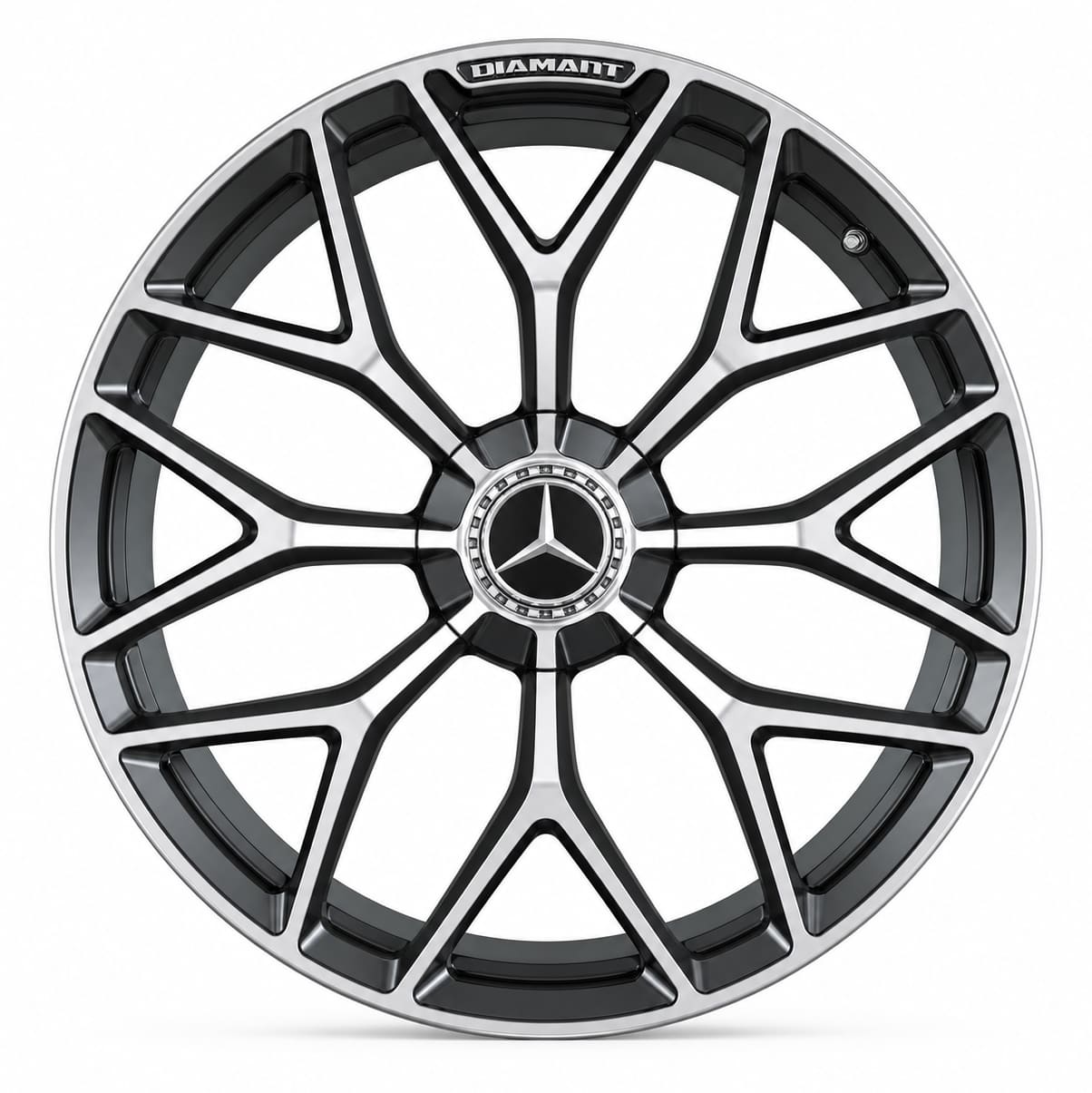

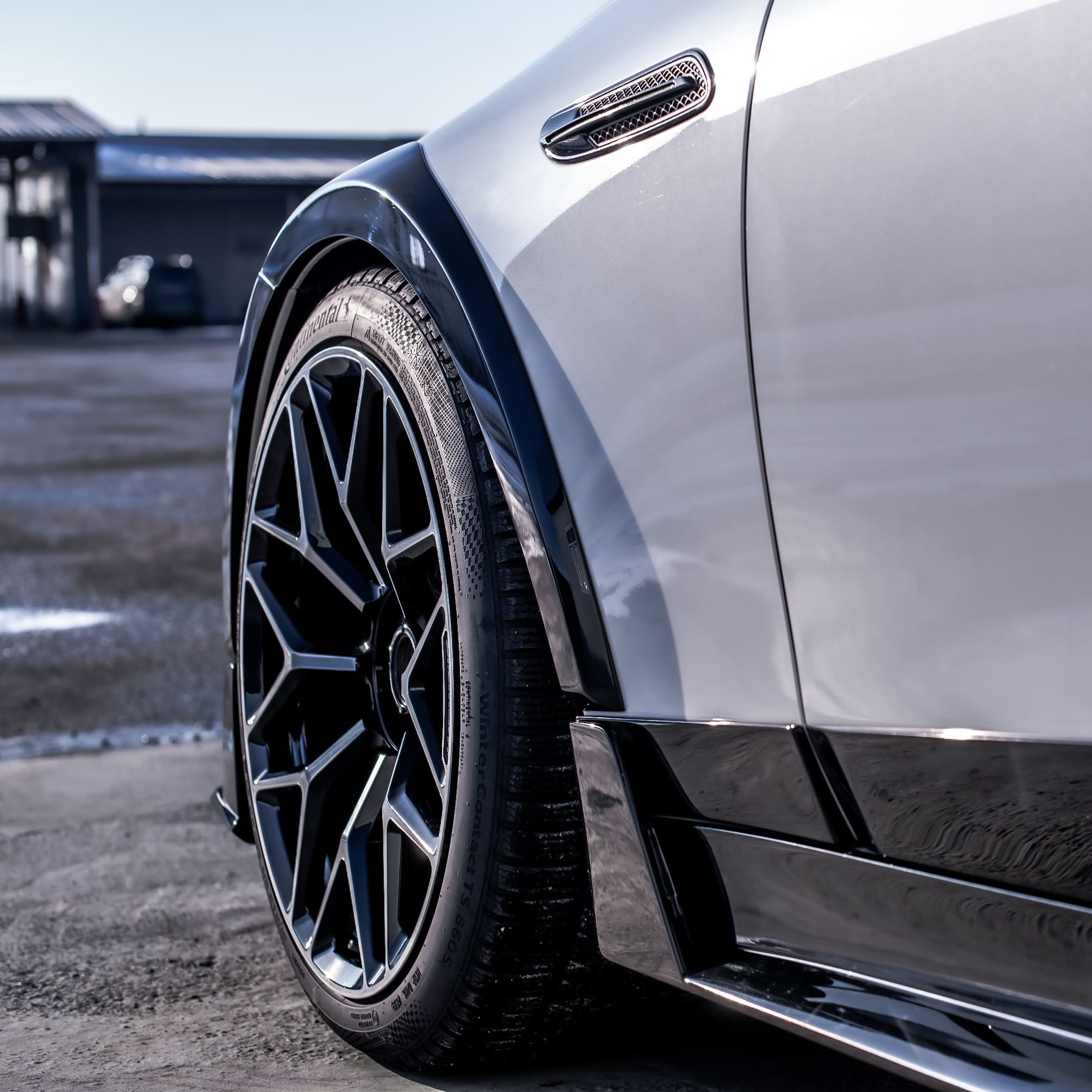

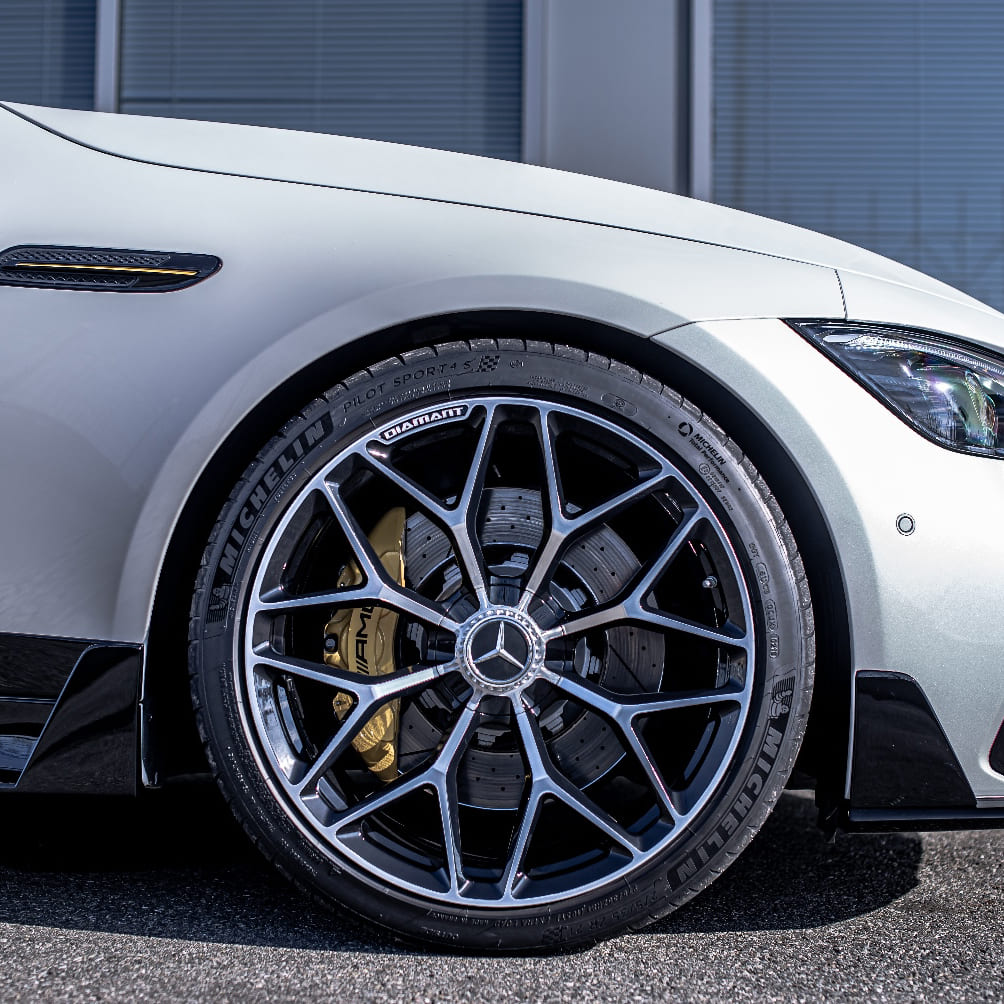

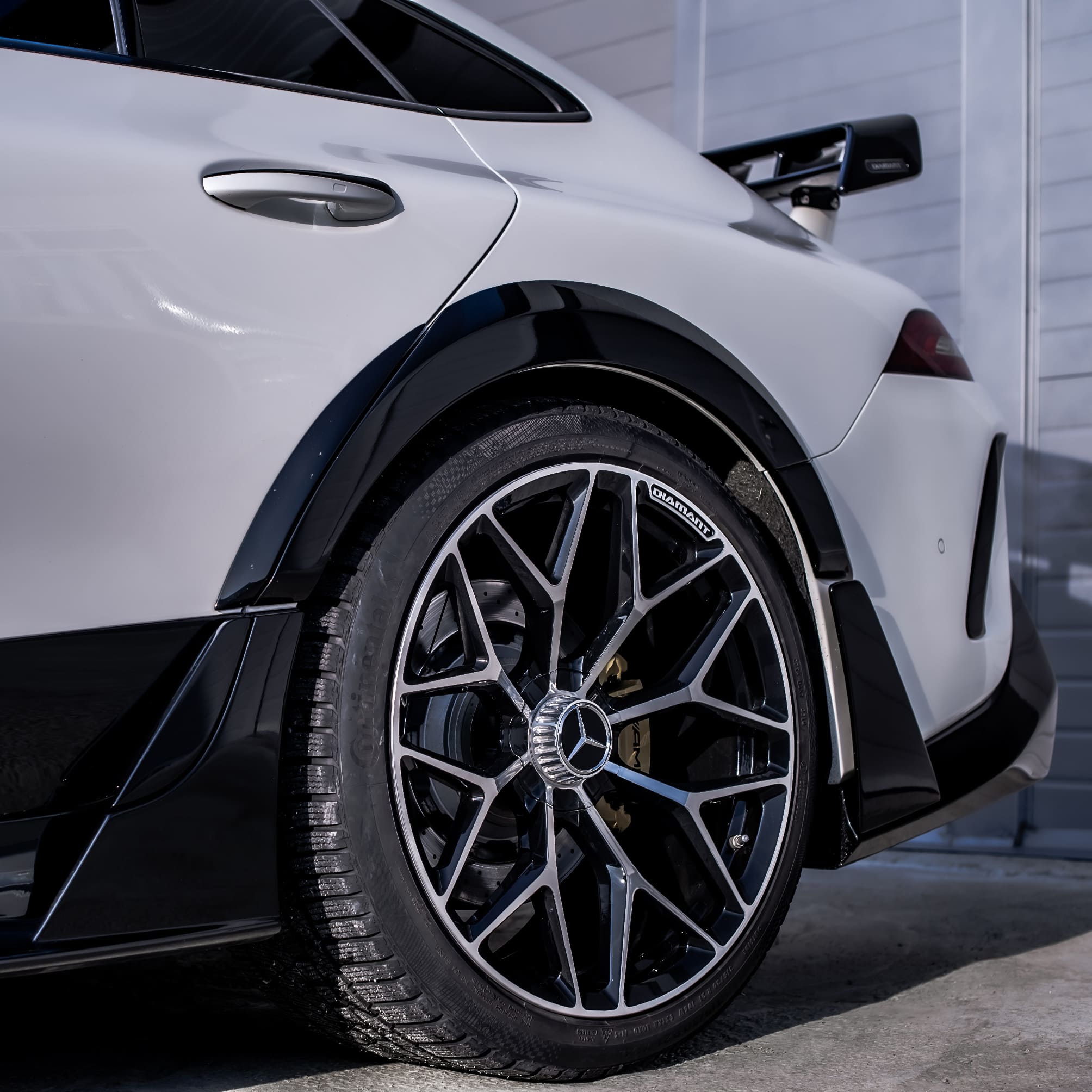

DIAMANT GT Forged Wheels
Parameters:
Diameter: 21 inches
Number of bolts: 5
Bolt pattern: 112 mm
Center bore (DIA): 66.6 mm
Offset (ET): Front 20, Rear 28
Width: Front 10 inches, Rear 11.5 inches
Description:
Monoblock forged wheels, developed specifically for the Mercedes-AMG GT 63S with the DIAMANT GT body kit. Manufactured using hot forging from 6061-T6 aerospace-grade aluminum with T6 tempering, ensuring high strength and low weight. This technology makes the wheels lightweight and resistant to impact loads. The aggressive staggered fitment with significantly wider rear wheels is engineered to match the GT 63S's performance-oriented chassis and wide stance, providing optimal grip and visual balance. The precise offsets ET20 front and ET28 rear are calibrated to work seamlessly with the DIAMANT GT body kit, creating a flush, race-inspired fitment with the widened fenders. The monoblock construction offers maximum structural integrity with minimum unsprung mass, enhancing acceleration, braking, and cornering response. The wheels are designed to perfectly complement the DIAMANT GT body kit and visually complete the overall appearance of the vehicle.
