2-Piece Forged Wheels

DRACO

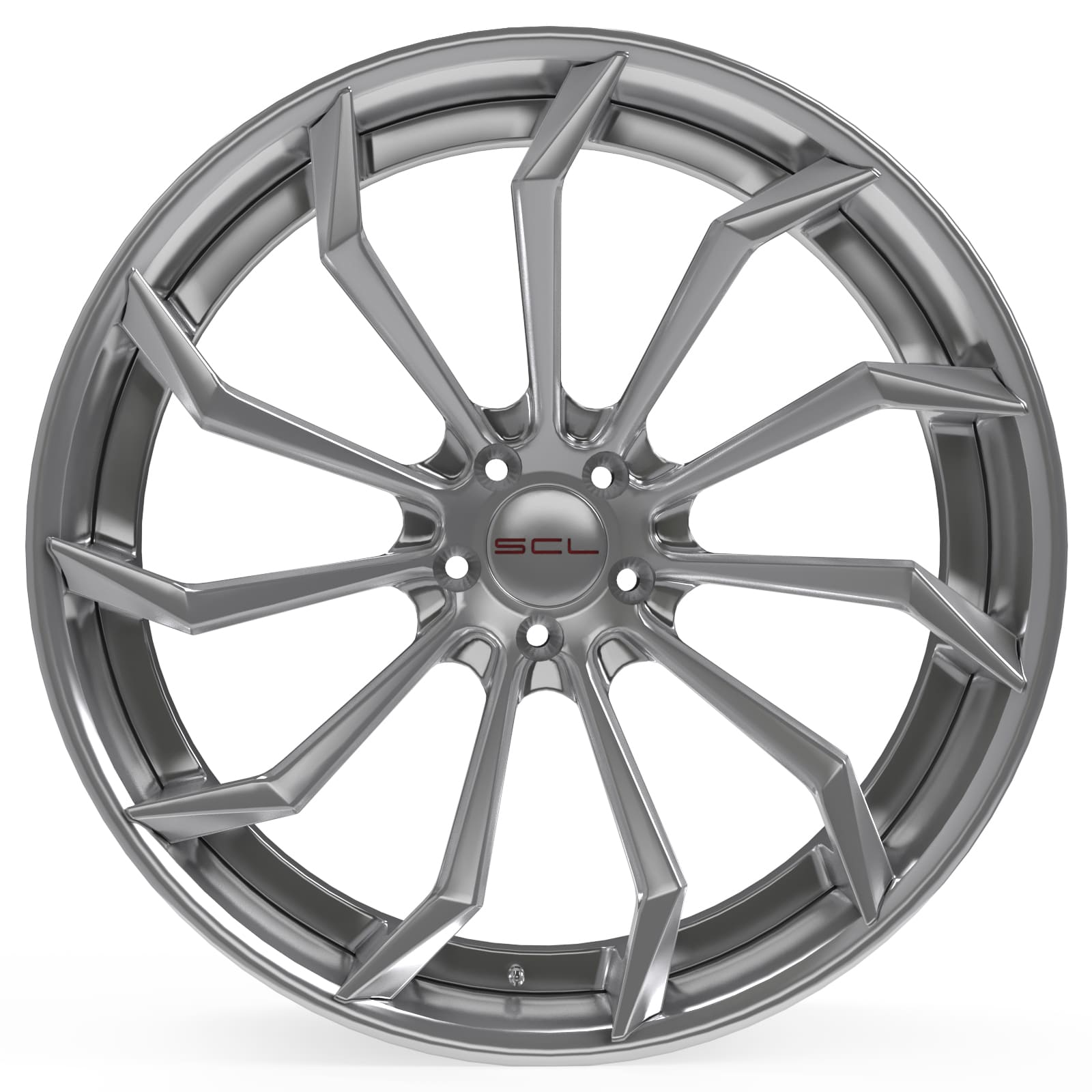

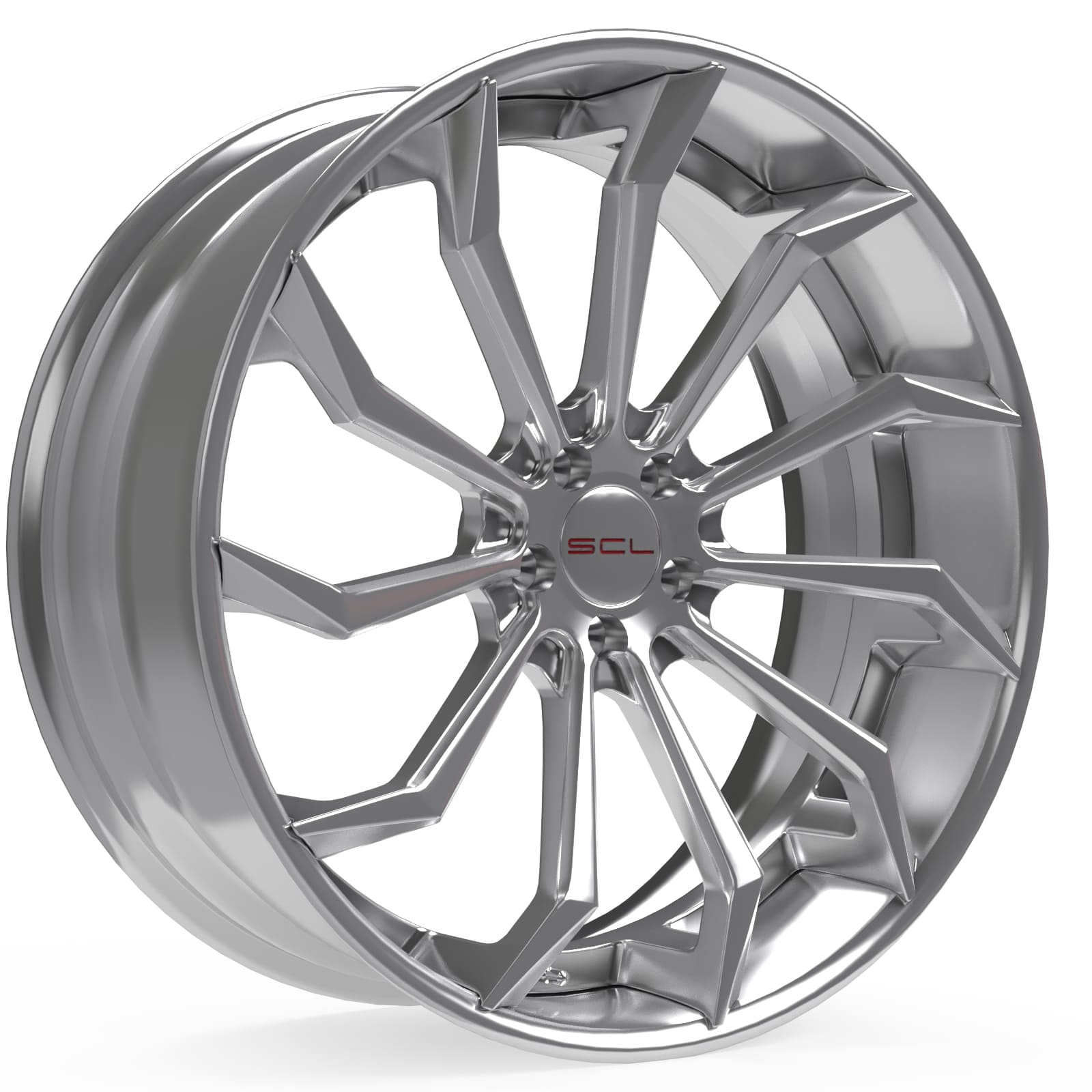

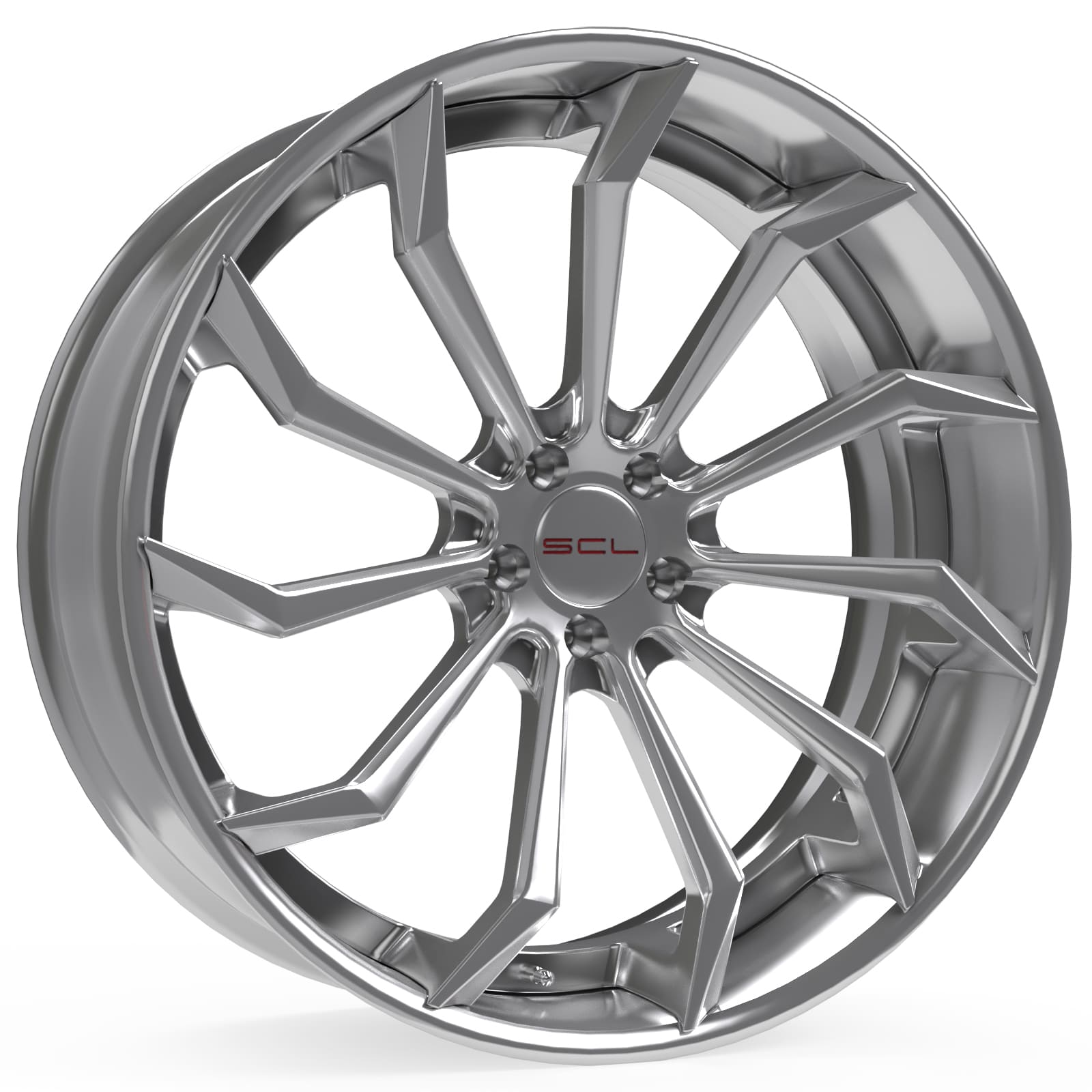

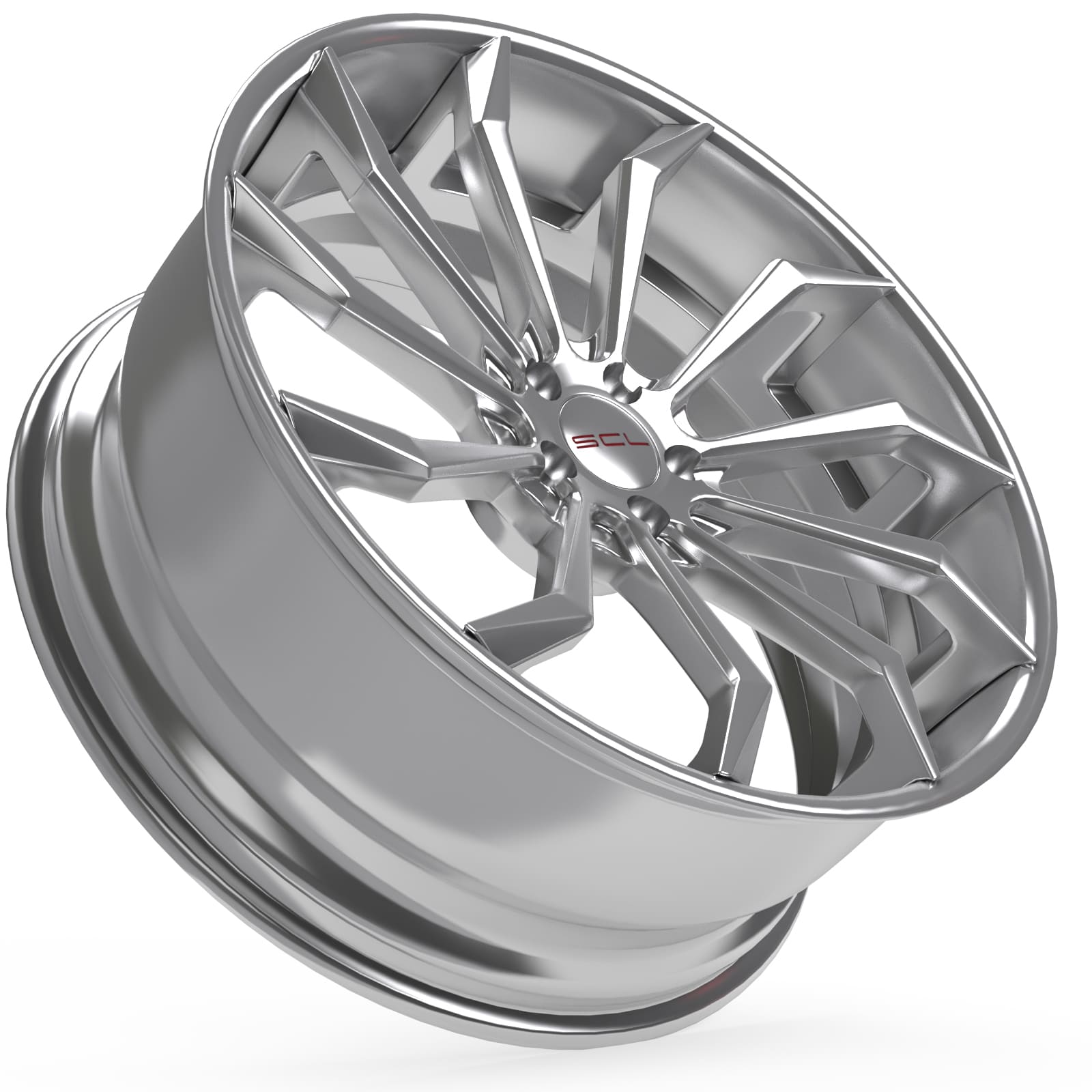

Forged two-piece wheels for Infiniti QX70 (S51)

Parameters:
Diameter: 22 inches
Number of bolts: 5
Pitch Circle Diameter (PCD): 114.3 mm
Center Bore (DIA): 66.1 mm
Offset (ET): 25
Width: 10 inches

Description:
Two-piece forged wheels, developed specifically for the Infiniti QX70 with the DRACO body kit. Manufactured using hot forging from 6061-T6 aerospace-grade aluminum with T6 tempering, ensuring high strength and low weight. This technology makes the wheels lightweight and resistant to impact loads, which is especially important for a heavy crossover. The 22x10 sizing with ET25 offset is engineered to perfectly match the geometry of the S51 body, creating a flush fitment with the fenders. The two-piece construction allows for a distinct separation between the center and the barrel, offering design flexibility and structural rigidity. The wheels are designed to perfectly complement the body kit and visually complete the overall appearance of the vehicle.

Set from 5.800 USD

Request quote

Choose another design

DRACO

TITAN

KOTARO

MAD MAX

Two-piece wheels are assembled wheel structures in which the central hub section and the outer barrel are manufactured separately and joined together using fastening elements (bolts or nuts). The main design feature is the presence of a separable construction, allowing different sizes, offsets, and center designs to be combined with various barrel widths and diameters. The two-piece construction technology expands the range of parameter options to meet specific requirements. Additionally, two-piece wheels serve as a stylish finishing touch for your vehicle's appearance. Wheels with any parameters of your choice can be manufactured.

Order custom design
